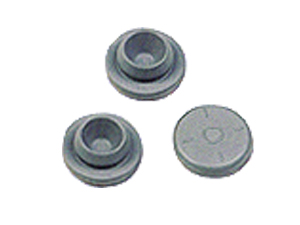

Ref NO: 711311
Size: 13-A OD of flange : 12.50mm ID of Neck : 7.50mm height of flange: 2.00mm Total Hight: 7.00mm |
Ref NO: 712011
Size: 20-A OD of flange : 18.80mm ID of Neck :13.2mm height of flange: 3.30mm Total Hight: 8.80mm |
Ref NO: 712020
Size: 20-B OD of flange : 19.05mm ID of Neck :13.30mm height of flange: 3.45mm Total Hight: 8.45mm |
|
|
|
|
Ref NO: 712022
Size: 20-B2 OD of flange : 19.50mm ID of Neck : 13.00mm height of flange: 3.00mm Total Hight: 8.70mm |
Ref NO: 712023
Size: 20-B3 OD of flange : 19.50mm ID of Neck : 13.00mm height of flange: 2.80mm Total Hight: 8.50mm |
Ref NO: 712025
Size: 20-B2-01 OD of flange : 19.50mm ID of Neck : 13.00mm height of flange: 3.00mm Total Hight: 8.70mm |
|
|
|
|
Ref NO: 750253
Size: Diameter1: 28.0±0.2 Diameter2: 31.8±0.3 TOtal height : 16±0.3 height of Flange:5.0±0.2 |
Ref NO: 750251
Size: 25-B3 Diameter: 24.8±0.1 Total height : 7.0±0.2 Inner Height: 4.4±0.2 piercing Hight: 2.5±0.2 |
Ref NO: 750252
Size: 25-A2 Diameter: 25±0.1 Total height : 6.1±0.1 Inner Height: 4.5±0.2 piercing Hight: 2.5±0.2 |
|
|
|
|
|
Ref NO: 732821 Size: 28-B OD of flange : 27.10mm ID of Neck : 17.80mm height of flange: 3.40mm Total Hight: 10.20mm |
Ref NO: 732822 Size: 28-B-1 OD of flange : 26.60mm ID of Neck : 18.00mm height of flange: 3.80mm Total Hight: 11.80mm |
Ref NO: 733211 Size: 32-A OD of flange : 30.80mm ID of Neck : 23.60mm height of flange: 4.00mm Total Hight: 12.20mm |
Ref NO: 733212 Size: 32-A-1 OD of flange : 31.00mm ID of Neck : 24.20mm height of flange: 5.00mm Total Hight: 16.00mm |
|
|
|
|
|
Ref NO: 721302 Size: 13-D2 OD of flange : 12.50mm ID of Neck : 7.50mm height of flange: 2.00mm Total Hight: 10.20mm |
Ref NO: 721304 Size: 13-D4 OD of flange : 12.5mm ID of Neck : 7.50mm height of flange: 2.50mm Total Hight: 9.90mm |
Ref NO: 722002 Size: 20-D2 OD of flange : 18.80mm ID of Neck : 13.20mm height of flange: 3.30mm Total Hight: 14.00mm |
Ref NO: 722003 Size: 20-D3 OD of flange : 18.80mm ID of Neck : 13.10mm height of flange: 3.30mm Total Hight: 13.80mm |
|
|||
